About GoodWe
What is the GoodWe ESA?
The GoodWe ESA is an all-in-one home battery. A GoodWe hybrid inverter sits on top of a stack of lithium iron phosphate (LFP) battery modules, and the units join through plug-in connectors built into each case. The single-phase range (EHA models) has six inverter sizes from 3 kW to 10 kW. The three-phase range (ETA models) has nine sizes from 5 kW to 30 kW.
Storage comes from battery modules rated at 5.12, 6.0, 8.32 or 9.0 kWh. One system takes up to 12 modules, from 5 kWh to 108 kWh, and different module sizes can be mixed. The ESA is made by GoodWe Technologies, a company founded in 2010 and based in Suzhou, China. GoodWe Australia, in Rowville, Victoria, is the Australian importer.
The stack can stand on a floor base against a wall, with up to six modules in one column. Smaller stacks of two or three modules can hang on the wall instead. Each module weighs 57.5 to 79 kg, so stacks of more than three need lifting equipment. A smart meter with a current transformer (CT) at the switchboard tells the system what the home imports and exports, and the installer commissions everything in GoodWe's SolarGo app.
Solar and storage integration
Inverters and battery systems are designed to coordinate residential solar generation and energy storage.
Established inverter platform
A broad inverter range supports different residential system sizes and installation requirements.
Energy monitoring
Monitoring tools help households understand solar production, storage and electricity consumption.
Solar invertersBattery storageHybrid systemsEnergy monitoring
In Sunbridge’s eyes
GoodWe review: an installer’s view
GoodWe Technologies was founded in 2010 in Suzhou, China, and has been listed on the Shanghai Stock Exchange since 2020. GoodWe Australia, in Rowville, Victoria, imports its products here, and for years its hybrid inverters and Lynx batteries were a value pick for installers. The ESA all-in-one, announced in Australia in October 2025, is its integrated battery system: a hybrid inverter on a stack of LFP modules, from 5 kWh to 108 kWh.
- Easy to install , the inverter and modules join through plug-in connectors built into each case.
- Strong build and safety , IP66, GoodWe’s 6-layer protection and integrated AFCI; single-phase inverter noise rated at 30 to 35 dB.
- Real value for money , flagship features without the flagship price.
- Backed by 10-year inverter and battery warranties from a manufacturer listed on the Shanghai Stock Exchange.
Available products
GoodWe batteries we supply and install
Explore products available through Sunbridge, with guidance based on your household energy use, existing solar system, backup expectations and future requirements.
GoodWe · Solar Battery
GoodWe ESA Series 5–30kW (Three-Phase)
GoodWe ESA Series, all-in-one three-phase home battery
- Up to 108 kWh12 modules per system
- 5–30 kWThree-phase · 9 sizes
- 10-yearWarranty · LFP
GoodWe ESA Series 5–30kW (Three-Phase) · with Sunbridge
The right fit for your home , and fully backed
Why the ESA Series 5–30kW (Three-Phase) fits your home
One maker, one warranty path
GoodWe makes both the inverter and the battery modules, and covers the inverter with a 10-year limited warranty and the modules with a 10-year product and performance warranty.
Backup-ready design
A dedicated backup port switches in under 4 ms. Which circuits are backed up is decided in the design, and in an outage output is limited to the inverter’s off-grid rating.
Tariff-aware control
GoodWe’s EMS can schedule charging and discharging around your tariff, and the SolarGo app and SEMS+ portal show generation, storage and consumption.
Designed, installed & backed by Sunbridge
10 yearsProduct & performance warranty
70%Usable energy guaranteed at 10 years
ACLAustralian Consumer Law protected
Warranty & compliance
- The ESA battery modules we quote (GW8.3-BAT-D-G20 and GW9.0-BAT-D-G20) are covered by GoodWe’s Limited Warranty for the Lynx D G2 Series battery system (Australia and New Zealand), which has two parts. The ESA inverter carries GoodWe’s 10-year limited inverter warranty.
- A 10-year product warranty covers the battery hardware , the electronics and the enclosure , against defects. A 10-year performance warranty guarantees that the battery retains at least 70% of its usable energy, or until throughput reaches 3 MWh of DC energy for every kWh of usable capacity, whichever comes first.
- GoodWe’s warranty requires the battery to be kept out of direct sunlight and states it is not suitable for life-sustaining medical devices. These are the manufacturer’s terms; your guarantees under the Australian Consumer Law apply in addition. Sunbridge registers the warranty on your behalf as part of the installation.
Rebate guidance
- Battery incentives change over time and depend on the exact battery model, the installation and your household. The federal Cheaper Home Batteries Program requires the battery to be on the Clean Energy Council approved list, and listing alone does not make a household eligible.
- Where an incentive applies, your Sunbridge quote shows it as a separate deduction, subject to eligibility at the time of installation. Your quote lists the exact battery model so you can check it against the approved list. See our battery rebate guidance for how the current programs work.
The detail
Full technical specifications
Battery
- Chemistry
- LFP (LiFePO₄)
- Rated energy per module
- 5.12 / 6.0 / 8.32 / 9.0 kWh
- Usable energy per module
- 5.0 / 5.9 / 8.0 / 8.85 kWh
- Depth of discharge (DoD)
- 98% (5.12, 6.0 and 9.0 kWh) / 96% (8.32 kWh)
- Power per module
- 5.0 / 3.0 / 8.0 / 4.5 kW
- Max. modules per system
- 12 (up to 108 kWh), up to 6 per column
- Cycle life (lab)
- ≥ 8,000 (5.12 and 8.32 kWh) / ≥ 10,000 (6.0 and 9.0 kWh)
- Module noise
- ≤ 29 dB (5.12 and 8.32 kWh) / ≤ 27 dB (6.0 and 9.0 kWh)
- Module weight
- 57.5 – 79 kg
- Battery ingress protection
- IP66
Inverter & power
- Inverter type
- Three-phase hybrid (all-in-one)
- Rated power
- 5 – 30 kW (9 models)
- Max. battery charge / discharge power
- 5 – 30 kW / 5.5 – 33 kW (by model)
- Max. efficiency
- 98.0 – 98.2%
- European (weighted) efficiency
- 96.4 – 97.4%
- Max. battery-to-AC efficiency
- 98.0%
- PV oversizing
- Up to 200% of rated power
- Number of MPPTs
- 3 – 4
- Operating temperature
- −35 °C to +60 °C
- Max. operating altitude
- 4,000 m (derating above 2,000 m)
- Inverter ingress protection
- IP66
Backup & system
- On/off-grid switchover
- < 4 ms
- Internal bypass
- 63 A (5 – 20 kW) / 80 A (25 and 30 kW)
- Off-grid output, 10 kW model
- 11 kVA max (20 kVA for 10 s)

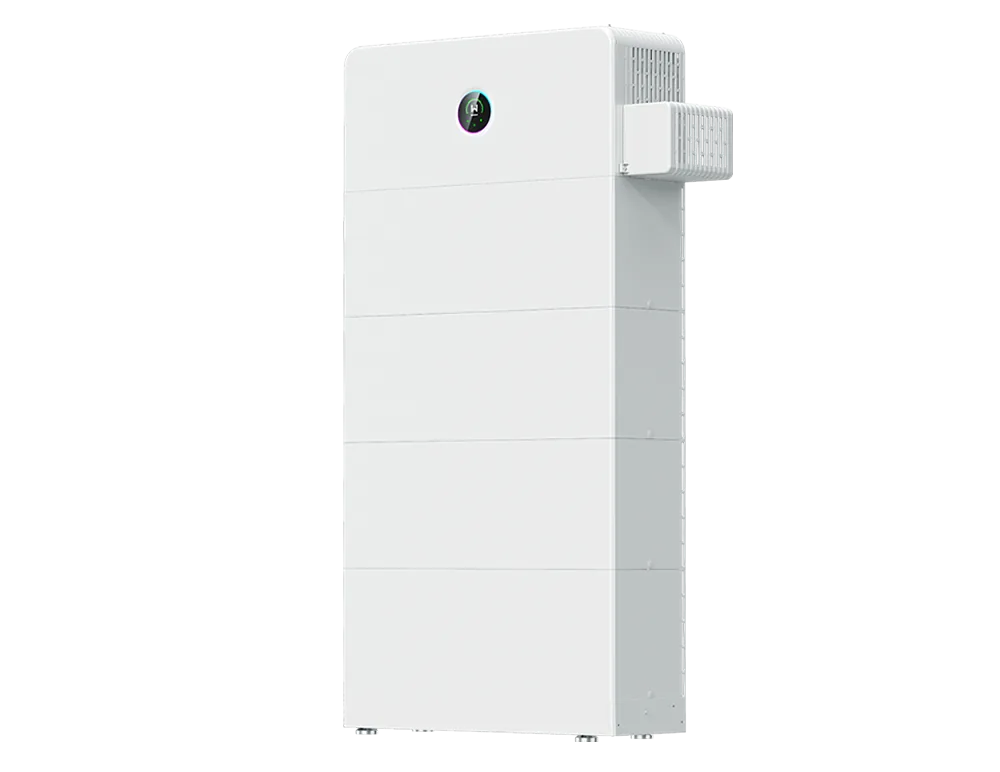

- Cooling
- Smart fan cooling; as low as 30 dB at 25 °C on the 5 – 8 kW models
Safety & certification
- Protection
- 6-layer protection (GoodWe), AFCI integrated
- Surge protection
- Type II (AC & DC)
- Battery safety standards
- IEC62619, IEC63056, IEC60730
- Inverter / EMC
- EN62477, IEC62040, CE, RCM
Monitoring & communication
- Energy management
- AI-driven EMS, time-of-use mode

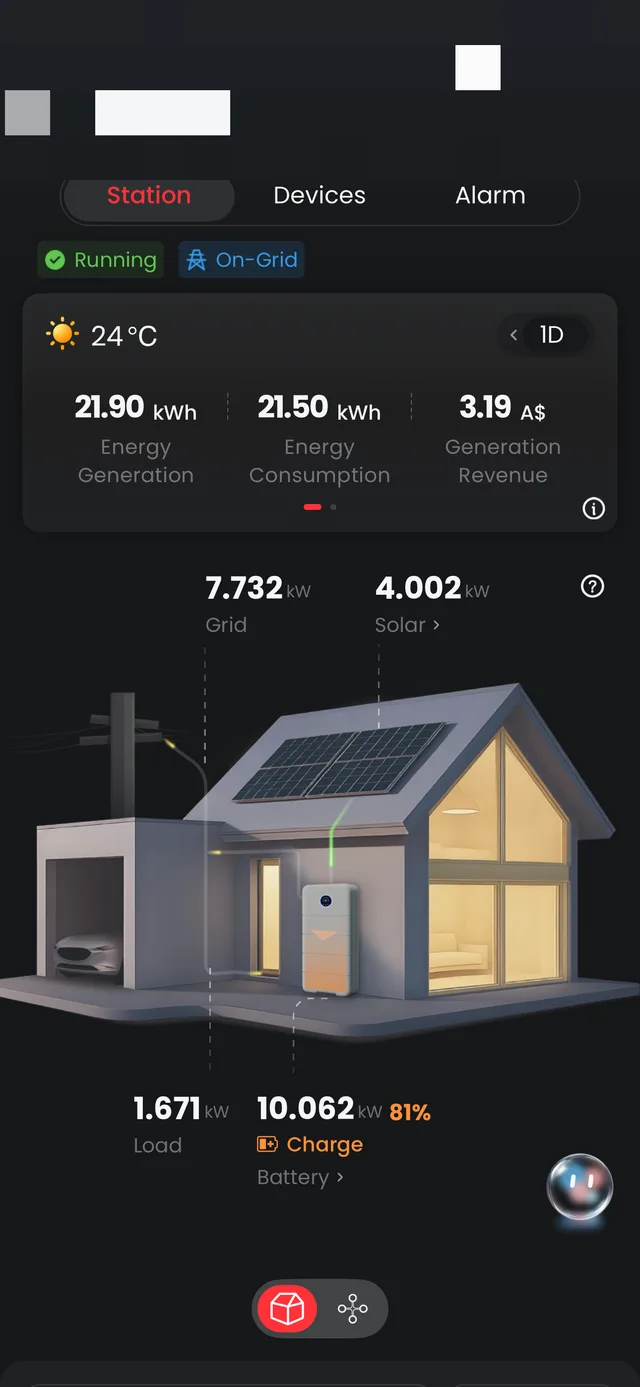

- App & portal
- SolarGo & SEMS+
- Communication
- RS485, Wi-Fi + LAN + Bluetooth, 4G (optional)
- Protocols
- Modbus-RTU / TCP, CAN (to BMS)
Specifications are from the GoodWe ESA 5–30 kW three-phase Australian datasheet (V2.1, October 2026), GoodWe’s Lynx D G2 battery warranty and the Clean Energy Council battery list. Exact figures depend on the inverter and modules; Sunbridge confirms the setup for your home in writing.
A closer look

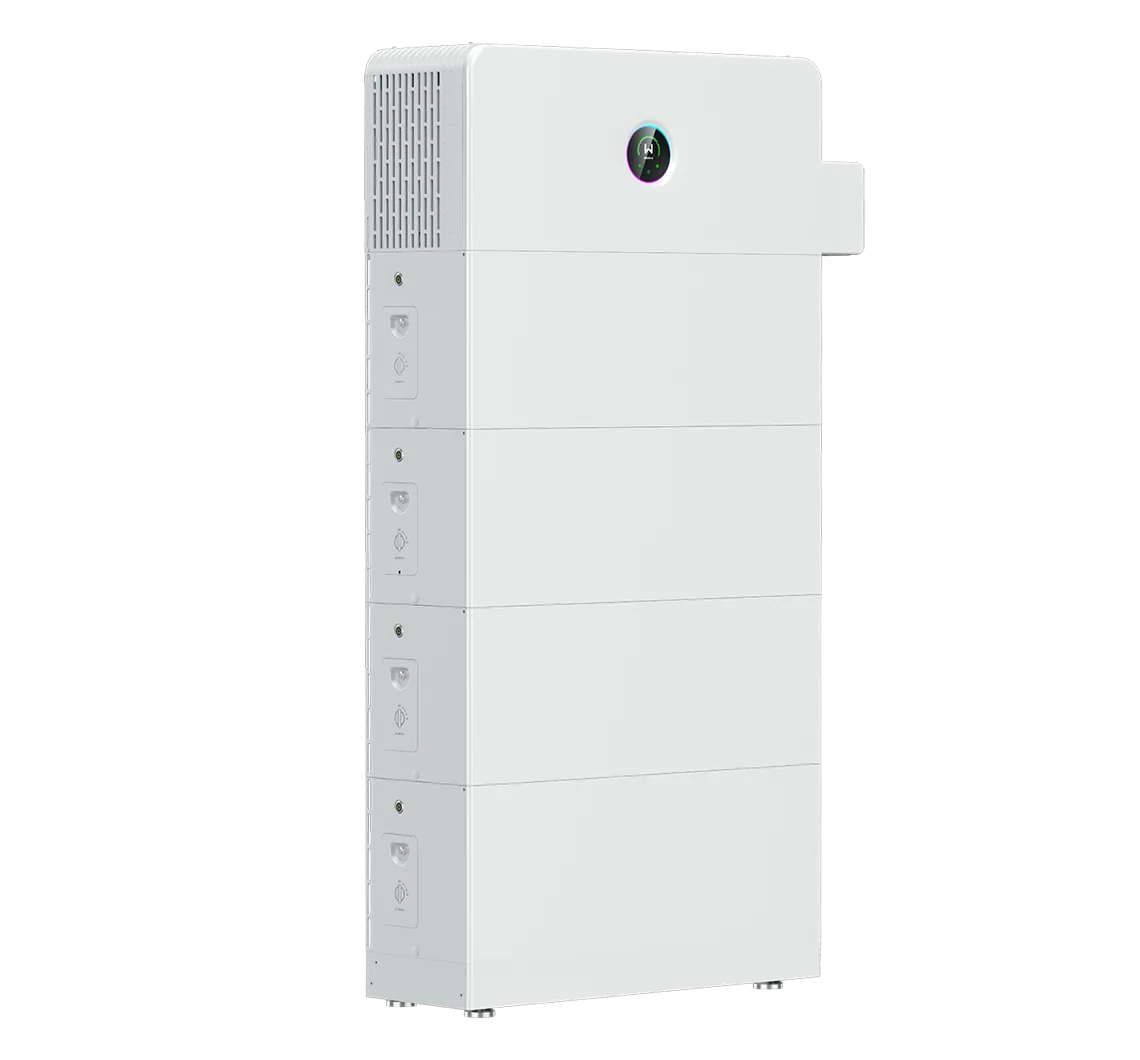

ESA Series 5–30kW (Three-Phase) gallery
The headline numbers , and what they actually mean at home
The EMS picks the timing, you set the rules
GoodWe’s AI-driven EMS decides when the battery charges and discharges. Its time-of-use mode can charge from the grid in a low-tariff period and discharge in a peak period, where local rules allow. Whether that suits you depends on your tariff, so we set the mode with you at handover.
- TOU
- Time-of-use mode
- SEMS+
- Owner app and portal
- VPP
- Where a program supports it

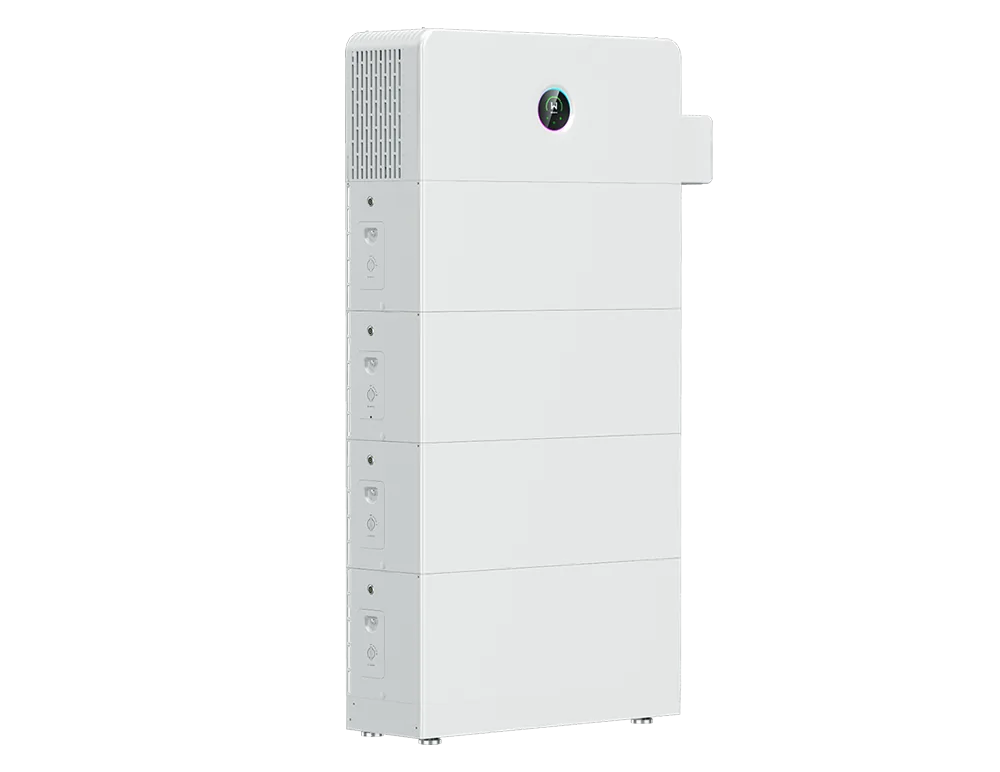

5–108 kWh , buy for today, expand later
The ESA stacks 5.12, 6.0, 8.32 or 9.0 kWh modules, up to 12 per system. GoodWe’s battery warranty supports adding modules later, and sizes can be mixed, although battery heating is unavailable in mixed stacks and expansion needs current BMS firmware.
- 12
- Modules per system
- 108 kWh
- Maximum with 9.0 kWh modules
- 6
- Modules per column
“1C” applies to two of the four module sizes
C-rate is how fast a battery moves energy relative to its size. GoodWe rates the 5.12 and 8.32 kWh modules at 5 kW and 8 kW each, about 1C. The 6.0 and 9.0 kWh modules are rated at 3 kW and 4.5 kW each, about 0.5C. Check the combined module power as well as kWh; the inverter rating caps the total.
- 8 kW
- Per 8.32 kWh module
- 4.5 kW
- Per 9.0 kWh module
- 200%
- DC oversizing , up to twice the panels

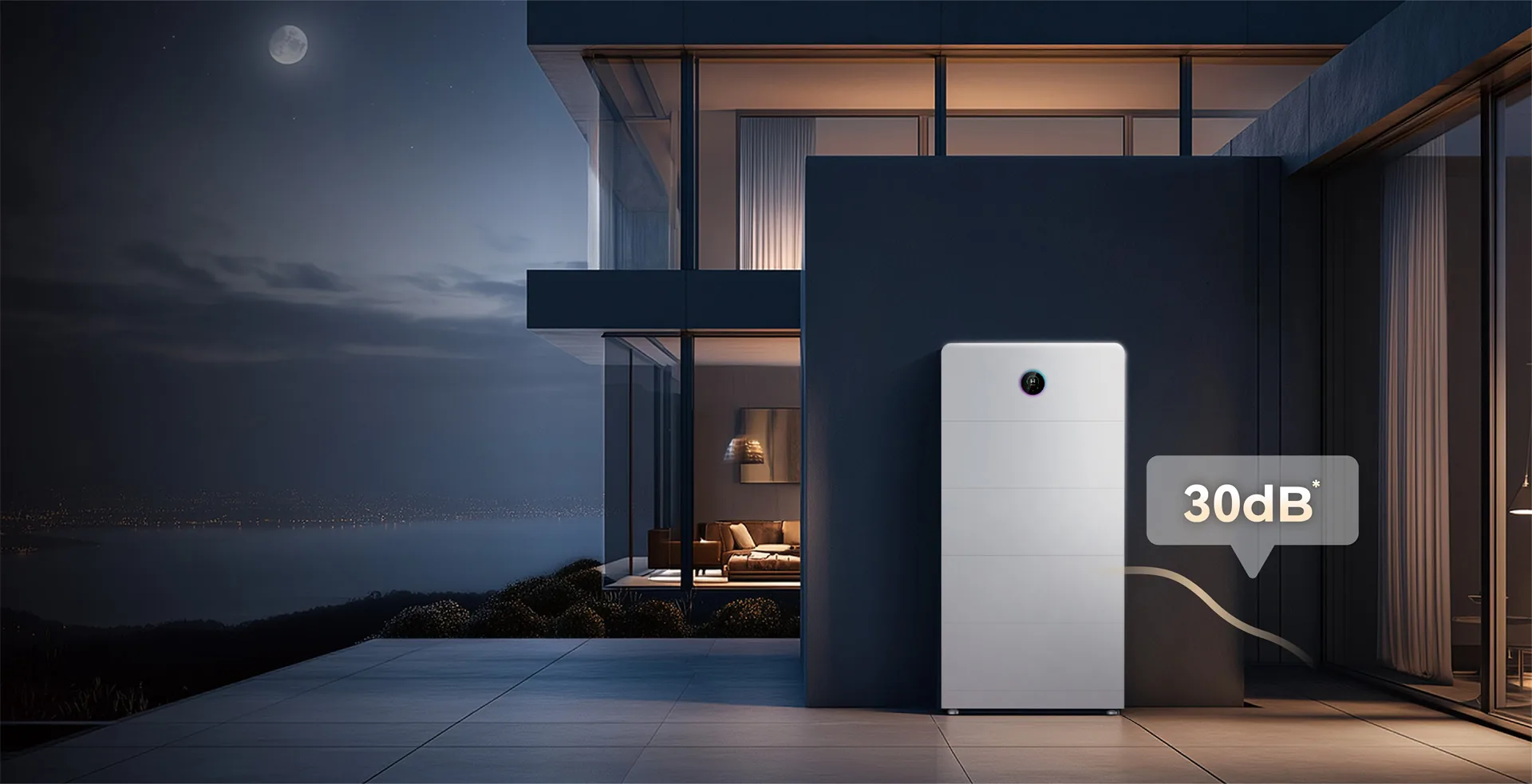

Noise ratings and backup switching
GoodWe quotes operating noise as low as 30 dB at 25 °C for the 5 to 8 kW three-phase models, which use smart fan cooling, and rates the battery modules at 29 dB or less. Fans run harder when the system works hard, so placement matters. On the backup port, switching from grid to battery takes under 4 ms; only circuits on that port are covered.
- 30 dB
- 5–8 kW models at 25 °C
- < 4 ms
- Backup port switchover
- 63 / 80 A
- Internal bypass
GoodWe · Solar Battery
GoodWe ESA Series 3–10kW (Single-Phase)
GoodWe ESA Series, single-phase all-in-one home battery
- 3–10 kWSix inverter sizes
- Up to 108 kWh12 modules per system
- 10-yearWarranty · LFP
GoodWe ESA Series 3–10kW (Single-Phase) · with Sunbridge
The right fit for your home , and fully backed
Why the ESA Series 3–10kW (Single-Phase) fits your home
Most Australian homes
Single-phase all-in-one storage in six inverter sizes from 3 to 10 kW. Our single-phase packages use the 10 kW model.
Backup-ready design
A dedicated backup port switches in under 4 ms. Which circuits are backed up is decided in the design, and in an outage output is limited to the inverter’s off-grid rating, 10 kVA on the 10 kW model.
Check module power
The 8.32 kWh module is rated at 8 kW and the 9.0 kWh module at 4.5 kW, so the module mix sets how much battery power is available at once.
Tariff-aware control
GoodWe’s EMS can schedule charging and discharging around your tariff, and the SolarGo app and SEMS+ portal show generation, storage and consumption.
Designed, installed & backed by Sunbridge
10 yearsProduct & performance warranty
70%Usable energy guaranteed at 10 years
ACLAustralian Consumer Law protected
Warranty & compliance
- The ESA battery modules we quote (GW8.3-BAT-D-G20 and GW9.0-BAT-D-G20) are covered by GoodWe’s Limited Warranty for the Lynx D G2 Series battery system (Australia and New Zealand), which has two parts. The ESA inverter carries GoodWe’s 10-year limited inverter warranty.
- A 10-year product warranty covers the battery hardware , the electronics and enclosure , against defects. A 10-year performance warranty guarantees that the battery retains at least 70% of its usable energy, or until it reaches its minimum guaranteed energy throughput of 3 MWh for every kWh of usable battery capacity, whichever comes first.
- GoodWe’s warranty requires the battery to be kept out of direct sunlight and states it is not suitable for life-sustaining medical devices. These are the manufacturer’s terms; your guarantees under the Australian Consumer Law apply in addition. Sunbridge registers the warranty on your behalf as part of the installation.
Rebate guidance
- Battery incentives change over time and depend on the exact battery model, the installation and your household. The federal Cheaper Home Batteries Program requires the battery to be on the Clean Energy Council approved list, and listing alone does not make a household eligible.
- Where an incentive applies, your Sunbridge quote shows it as a separate deduction, subject to eligibility at the time of installation. Your quote lists the exact battery model so you can check it against the approved list. See our battery rebate guidance for how the current programs work.
The detail
Full technical specifications
Battery
- Chemistry
- LFP (LiFePO₄)
- Rated energy per module
- 5.12 / 6.0 / 8.32 / 9.0 kWh
- Usable energy per module
- 5.0 / 5.9 / 8.0 / 8.85 kWh
- Depth of discharge (DoD)
- 98% (5.12, 6.0 and 9.0 kWh) / 96% (8.32 kWh)
- Power per module
- 5.0 / 3.0 / 8.0 / 4.5 kW
- Max. modules per system
- 12 (up to 108 kWh), up to 6 per column
- Cycle life (lab)
- ≥ 8,000 (5.12 and 8.32 kWh) / ≥ 10,000 (6.0 and 9.0 kWh)
- Battery ingress protection
- IP66
Inverter & power
- Inverter type
- Single-phase hybrid (all-in-one)
- Rated power
- 3 / 3.6 / 5 / 6 / 8 / 10 kW
- Output voltage
- 220 / 230 / 240 V, L / N / PE
- Max. battery charge / discharge (10 kW model)
- 13.5 kW / 11.0 kW
- Solar inputs
- 2 MPPTs (3 – 6 kW) / 4 MPPTs (8 and 10 kW), 600 V max
- PV oversizing
- Up to 200% of rated power
- Max. efficiency
- 97.5 – 97.6%
- European efficiency
- 96.5 – 97.0%
- Max. battery-to-AC efficiency
- 97.8 – 98.0%
- Noise (inverter)
- ≤ 30 dB (3 – 6 kW) / ≤ 35 dB (8 and 10 kW)
- Operating temperature
- −35 °C to +60 °C (derating above 40 °C)
- Ingress protection
- IP66
Backup & safety
- Backup switchover
- < 4 ms
- Internal bypass
- Up to 63 A (8 and 10 kW models)
- Off-grid output, 10 kW model
- 10 kVA (20 kVA for 10 s)
- Protection
- 6-layer protection (GoodWe), AFCI integrated
Warranty
- Product warranty
- 10 years
- Performance warranty
- ≥ 70% usable energy (or 3 MWh per kWh throughput)
- Inverter warranty
- 10 years (limited)
Specifications are from the GoodWe ESA 3–10 kW single-phase Australian datasheet (V2.1, October 2026), GoodWe’s Lynx D G2 battery warranty and the Clean Energy Council battery list. Exact figures depend on the inverter and modules; Sunbridge confirms the setup for your home in writing.
The headline numbers , and what they actually mean at home
The EMS picks the timing, you set the rules
GoodWe’s AI-driven EMS decides when the battery charges and discharges. Its time-of-use mode can charge from the grid in a low-tariff period and discharge in a peak period, where local rules allow. Whether that suits you depends on your tariff, so we set the mode with you at handover.
- TOU
- Time-of-use mode
- SEMS+
- Owner app and portal
- VPP
- Where a program supports it
5–108 kWh across six inverter sizes
The single-phase ESA stacks 5.12, 6.0, 8.32 or 9.0 kWh LFP modules, up to 12 per system, with six inverter sizes from 3 kW to 10 kW. Modules can be added later, although battery heating is unavailable in mixed stacks and expansion needs current BMS firmware.
- 12
- Modules per system
- 108 kWh
- Maximum with 9.0 kWh modules
- 3–10 kW
- Six inverter sizes
“1C” applies to two of the four module sizes
C-rate is how fast a battery moves energy relative to its size. GoodWe rates the 5.12 and 8.32 kWh modules at 5 kW and 8 kW each, about 1C. The 6.0 and 9.0 kWh modules are rated at 3 kW and 4.5 kW each, about 0.5C. The 10 kW inverter caps battery charging at 13.5 kW and discharging at 11 kW.
- 8 kW
- Per 8.32 kWh module
- 4.5 kW
- Per 9.0 kWh module
- LFP
- Lithium iron phosphate cells
Under 4 ms on the backup port
When the grid drops, circuits on the backup port switch to battery power in under four thousandths of a second. Some owners report lights flickering and some appliances needing a restart. With up to 63 A of bypass, the 8 and 10 kW models are designed to support whole-home backup where the switchboard allows; in an outage the 10 kW model supplies up to 10 kVA.
- < 4 ms
- Backup port switchover
- 63 A
- Bypass, 8 and 10 kW models
- ≤ 35 dB
- Inverter, 8 and 10 kW models
- System assessment
- Product guidance
- Installation coordination
- After-sales support
Installed prices
How much does a GoodWe battery cost in Australia?
GoodWe home batteries supplied and installed by Sunbridge Energy: 19 packages from 18 kWh (from $7,566.50) to 54 kWh (from $16,982.93), including GST, after the federal battery rebate. Prices as at 16 November 2026.
GoodWe Verified Installer, installer code G10000622
- 18 kWh10 kW inverterSingle-phase$7,837.93inc. GSTView the written quote
- 18 kWh10 kW inverterThree-phase$7,566.50inc. GSTView the written quote
- 18 kWh15 kW inverterThree-phase$7,878.63inc. GSTView the written quote
- 27 kWh10 kW inverterSingle-phase$9,432.63inc. GSTView the written quote
- 27 kWh10 kW inverterThree-phase$9,581.13inc. GSTView the written quote
- 27 kWh15 kW inverterThree-phase$9,581.13inc. GSTView the written quote
- 33.28 kWh10 kW inverterSingle-phase$11,482.43inc. GSTView the written quote
- 33.28 kWh10 kW inverterThree-phase$11,633.13inc. GSTView the written quote
- 33.28 kWh15 kW inverterThree-phase$11,633.13inc. GSTView the written quote
- 36 kWh10 kW inverterSingle-phase$11,762.93inc. GSTView the written quote
- 36 kWh10 kW inverterThree-phase$11,913.63inc. GSTView the written quote
- 36 kWh15 kW inverterThree-phase$11,913.63inc. GSTView the written quote
- 45 kWh10 kW inverterSingle-phase$14,526.43inc. GSTView the written quote
- 45 kWh10 kW inverterThree-phase$14,468.13inc. GSTView the written quote
- 45 kWh15 kW inverterThree-phase$14,468.13inc. GSTView the written quote
- 54 kWh10 kW inverterSingle-phase$16,982.93inc. GSTView the written quote
- 54 kWh10 kW inverterThree-phase$17,133.63inc. GSTView the written quote
- 54 kWh15 kW inverterThree-phase$17,309.63inc. GSTView the written quote
- 54 kWh20 kW inverterThree-phase$17,406.43inc. GSTView the written quote
Installed price for a standard installation, including GST, after the federal battery rebate. The site inspection confirms your home. Compare every brand's prices
What size GoodWe battery do I need?
Start with the energy your home uses between sunset and sunrise. Your retailer bill, smart meter data or solar app shows it in kWh. Choose a battery whose usable capacity covers that, plus any growth you expect from an EV or electric hot water. The site inspection confirms the size before you commit.
Every ESA is a stack of modules rated at 5.12, 6.0, 8.32 or 9.0 kWh, and our packages use the two larger sizes. Our 18, 27, 36, 45 and 54 kWh packages are two, three, four, five and six 9.0 kWh modules. Our 33.28, 41.6 and 49.92 kWh packages are four, five and six 8.32 kWh modules. Usable capacity is slightly lower than rated (GoodWe's datasheet gives 8.0 kWh usable for an 8.32 kWh module), and our price table shows the usable figure for each package. One column holds up to six modules. Beyond that, GoodWe's expansion kit splits the battery into up to three groups, with a ceiling of 12 modules or 108 kWh per system. Modules can be added later, but wall-mounted stacks are limited to two or three modules, and the module mix also sets how much power the battery can deliver at once.
| Battery | Usable | Supply | Installed from | Quote |
|---|---|---|---|---|
| 18 kWh | 17.4 kWh | Single-phase or Three-phase | $7,566.50 | View the quote |
| 27 kWh | 26.1 kWh | Single-phase or Three-phase | $9,432.63 | View the quote |
| 33.28 kWh | 32 kWh | Single-phase or Three-phase | $11,482.43 | View the quote |
| 36 kWh | 34.8 kWh | Single-phase or Three-phase | $11,762.93 | View the quote |
| 45 kWh | 43.5 kWh | Single-phase or Three-phase | $14,468.13 | View the quote |
| 54 kWh | 52.2 kWh | Single-phase or Three-phase | $16,982.93 | View the quote |
Can I add a GoodWe battery to my existing solar?
Usually, yes, and there are two ways to do it. Your existing panels can be rewired to the ESA's own solar inputs, which retires the old inverter, as long as the panel strings fit within the ESA's voltage and current limits. Or the old inverter can stay and connect on the AC side, which GoodWe supports for its own and third-party inverters if the old inverter's rating is no larger than the ESA's. A site inspection confirms which option suits your panels, inverter and switchboard.
- Solar inputs: the single-phase hybrid accepts up to 600 V DC, with 2 solar inputs on the 3 to 6 kW models and 4 on the 8 and 10 kW models, 20 A per input, and panels up to 200% of the inverter rating. The three-phase hybrid accepts up to 1,000 V DC, with 3 inputs on the 5 to 8 kW models and 4 on the 10 kW and larger models. Our quotes include an optional line for removing the old inverter.
- Keeping the old inverter (AC coupling): it connects on the grid side of the ESA. GoodWe recommends its own inverters but supports third-party ones, and the old inverter's rated output must be less than or equal to the ESA inverter's rated output. GoodWe also makes AC-coupled ESA versions with no solar inputs (BHA single-phase and BTA three-phase models).
- Metering: every ESA works from a smart meter and CT at the main switchboard. Our single-phase packages list a GoodWe GMK110 meter and our three-phase packages generally list a GMK330. When an old inverter stays, GoodWe's manual calls for a second meter so the app can show that inverter's output and the true household load.
- Export limits: if the old inverter also has to be export-limited, GoodWe says it needs its own meter or CT, and each inverter's limit is set separately.
- Phase: EHA models connect to a single-phase supply (220 to 240 V) and ETA models to a three-phase supply (230/400 V). The ESA has to match the home's supply.
What does the GoodWe price include, and what costs extra?
Every price above is the installed price for a standard installation, including GST, after the federal battery rebate. These are the choices and site work that change it for GoodWe.
Included in every price
- Supply of the listed equipment
- Standard installation and commissioning
- System testing and customer handover
- Applicable rebate shown as an upfront deduction
Extras, if you choose them
- Partial backup+$500
- Full house backup+$800 (three phase only)
- New concrete slab+$250
- Garage installation+$500
- Cable beyond 5 m$30 per metre
- Remove old inverter+$300
- Remove old battery+$600
- Remove old inverter and battery+$900
Only if the inspection finds it is needed
- Switchboard upgradeup to $1,500
Not included unless your quote says so: Switchboard replacement, asbestos work, trenching, cranes and structural work unless expressly included; Network or metering charges imposed after issue of this quote; Additional work identified during site verification.
GoodWe compared with other batteries at the same size
Our lowest installed price for each GoodWe size, next to the closest-sized package from the other brands we install. Same inclusions, same branches.
| GoodWe | Anker SOLIX | ESY SUNHOME | EcoFlow | Sigenergy | SolaX | Sungrow |
|---|---|---|---|---|---|---|
| 18 kWh · $7,566.50 | 20 kWh · $8,098.30 | No close size | 16 kWh · $10,255.80 | 18 kWh · $8,067.60 | 20.4 kWh · $8,019.80 | 20 kWh · $10,205.24 |
| 27 kWh · $9,432.63 | 25 kWh · $9,307.30 | 30.72 kWh · $6,997.53 | 25.5 kWh · $10,451.60 | 27 kWh · $9,929.60 | 25.5 kWh · $9,036.10 | 25 kWh · $11,105.74 |
| 33.28 kWh · $11,482.43 | 30 kWh · $10,775.30 | 30.72 kWh · $6,997.53 | 32 kWh · $14,675.63 | 36 kWh · $14,508.50 | 30.6 kWh · $10,699.20 | 35 kWh · $14,761.28 |
| 36 kWh · $11,762.93 | No close size | 30.72 kWh · $6,997.53 | 32 kWh · $14,675.63 | 36 kWh · $14,508.50 | 40.8 kWh · $13,459.10 | 35 kWh · $14,761.28 |
| 45 kWh · $14,468.13 | No close size | No close size | No close size | 45 kWh · $17,406.50 | 40.8 kWh · $13,459.10 | 40 kWh · $16,253.78 |
| 54 kWh · $16,982.93 | No close size | No close size | No close size | 54 kWh · $22,440.20 | 51 kWh · $17,752.70 | No close size |
GoodWe ESA pros and cons
What we tell customers before they choose GoodWe.
Pros
- One integrated system: the inverter and battery stack join with plug-in connectors, and GoodWe covers the ESA inverter with a 10-year limited warranty and the battery modules with a 10-year product and performance warranty.
- Wide size range: six single-phase inverter sizes (3 to 10 kW), nine three-phase sizes (5 to 30 kW) and four module sizes, from 5 kWh up to 108 kWh with 12 modules.
- Room for more solar: the hybrid models accept panels up to 200% of the inverter rating, for example 20 kW on the 10 kW single-phase model and 60 kW on the 30 kW three-phase model.
- Backup-ready design: a dedicated backup port, switchover in under 4 ms and an internal grid bypass of up to 63 A (80 A on the 25 and 30 kW three-phase models) allow whole-home backup designs with the right backup configuration.
- Built for outdoor sites: the inverter and modules are rated IP66, the inverter operates from -35 °C to +60 °C (the single-phase model derates above 40 °C), and the G20 modules have built-in heating and aerosol fire extinguishing.
- Quiet rating: GoodWe rates the single-phase inverter at 30 dB or less on the 3 to 6 kW models and 35 dB or less on the 8 and 10 kW models, and the battery modules at 29 dB or less.
Cons and things to check
- Newer product line: GoodWe Australia announced the ESA in October 2025, and its documents have changed quickly. The July 2025 installation manual capped a single-phase battery cluster at 48 kWh with two module sizes, while current datasheets list four module sizes and 108 kWh. Check that your quote uses current models and firmware.
- Power differs by module: the 5.12 and 8.32 kWh modules are rated at 5 kW and 8 kW each, but the 6.0 and 9.0 kWh modules at 3 kW and 4.5 kW each. GoodWe's 1C charge and discharge headline applies to the first pair, so check combined module power, not just kWh.
- Heavy and needs space: modules are 800 mm wide and weigh 57.5 to 79 kg each. Wall mounting is limited to two or three modules per stack, so larger systems need floor space, and GoodWe's warranty requires the battery to be kept out of direct sunlight.
- Backup has limits: in a blackout the ESA can only supply its off-grid rating, for example 10 kVA on the 10 kW single-phase model (20 kVA for 10 seconds). The higher bypass rating only applies while grid power is available. GoodWe's warranty also states the battery is not suitable for life-sustaining medical devices.
- Mixing caveats: GoodWe's manuals say battery heating is unavailable when module types are mixed, and mixing or split expansion needs BMS and DC-DC firmware V06 or later.
Sources: GoodWe ESA 3-10kW single-phase hybrid datasheet (AU, V2.1, Oct 2026), GoodWe ESA 3-10kW single-phase AC-coupled datasheet (AU, V2.1), GoodWe ESA 5-30kW three-phase datasheet (AU, V2.1, Oct 2026), GoodWe ESA 3-10kW user manual (V1.8, Jul 2026): coupling scenarios, dual meters, mounting limits, TOU mode, expansion, GoodWe ESA 3-10kW installation manual for Australia (V1.0, Jul 2025): earlier 48 kWh cluster limit, lifting, meters, GoodWe ESA 5-30kW user manual (V1.5, Sep 2026): coupling, BTA models, PV inputs per model, mounting limits, GoodWe Limited Warranty for Lynx D G2 Series battery system, AU and NZ (Rev 1.1), GoodWe Limited Warranty for Inverter System, AU and NZ (ESA 3-10K and 5-30K: 10 years), GoodWe About Us (founded 2010, listed 2020, stock code 688390), GoodWe Australia ESA announcement (24 Oct 2025), GoodWe Australia ESA single-phase product page.
The SEMS app
The SEMS app: what you can see and control

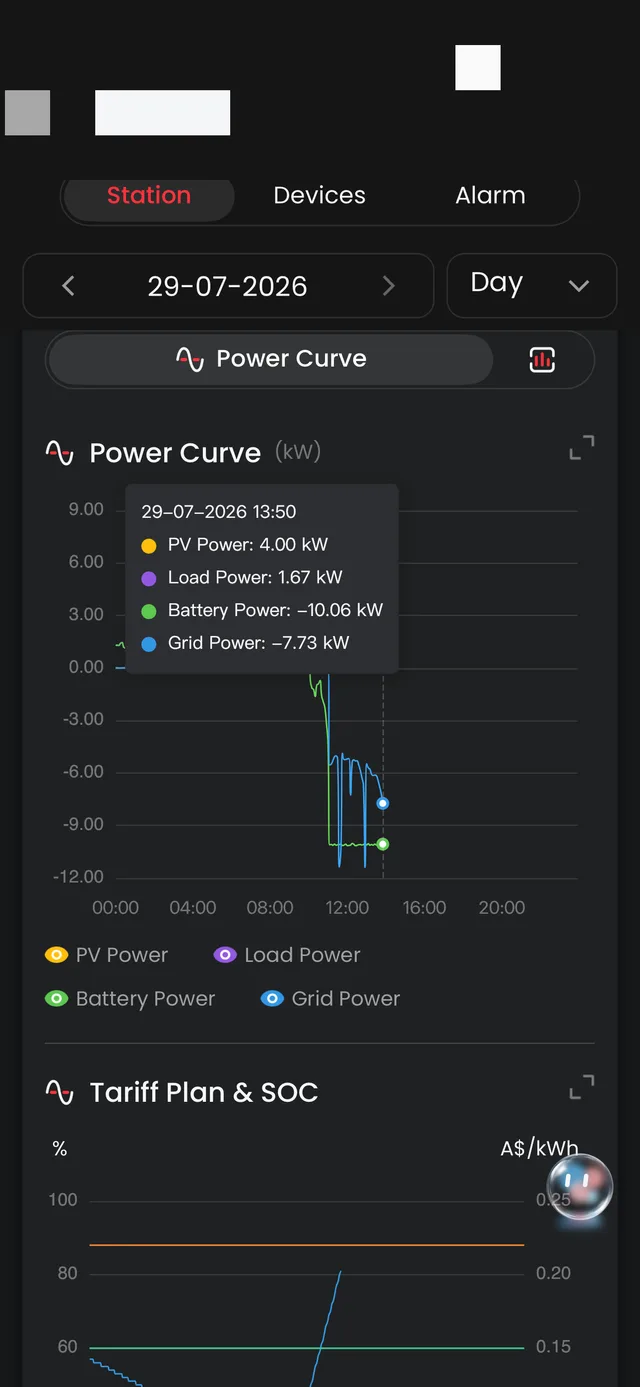

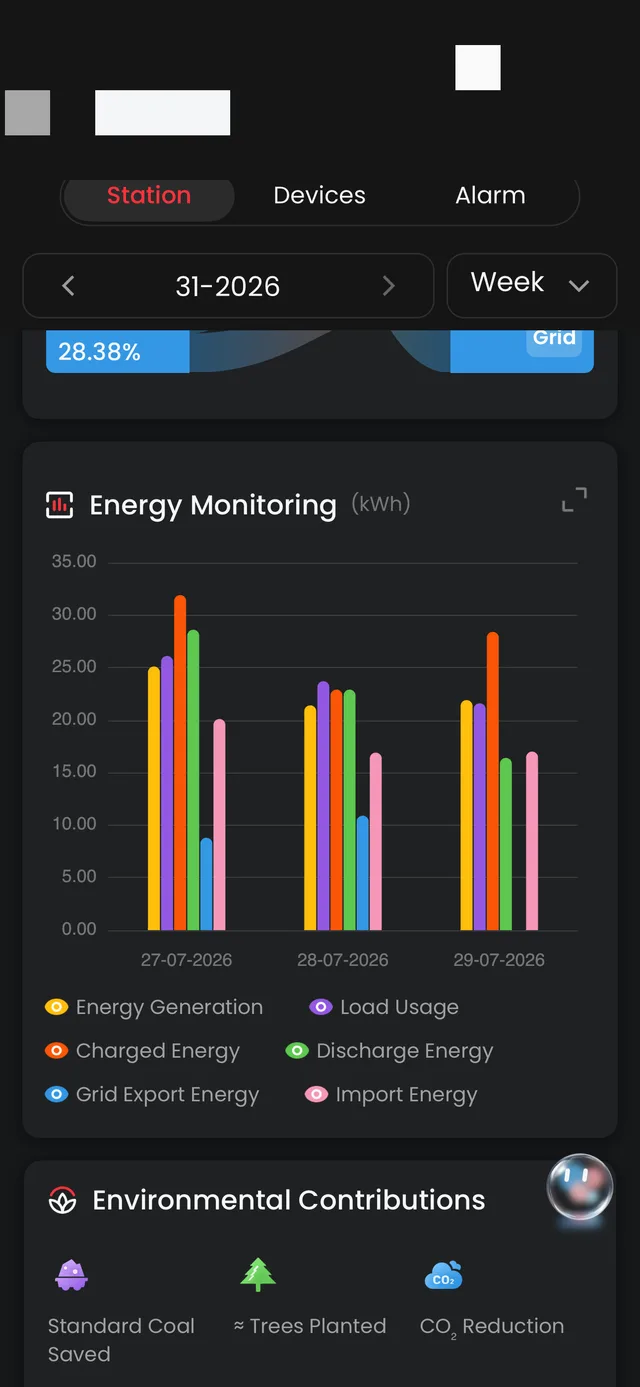

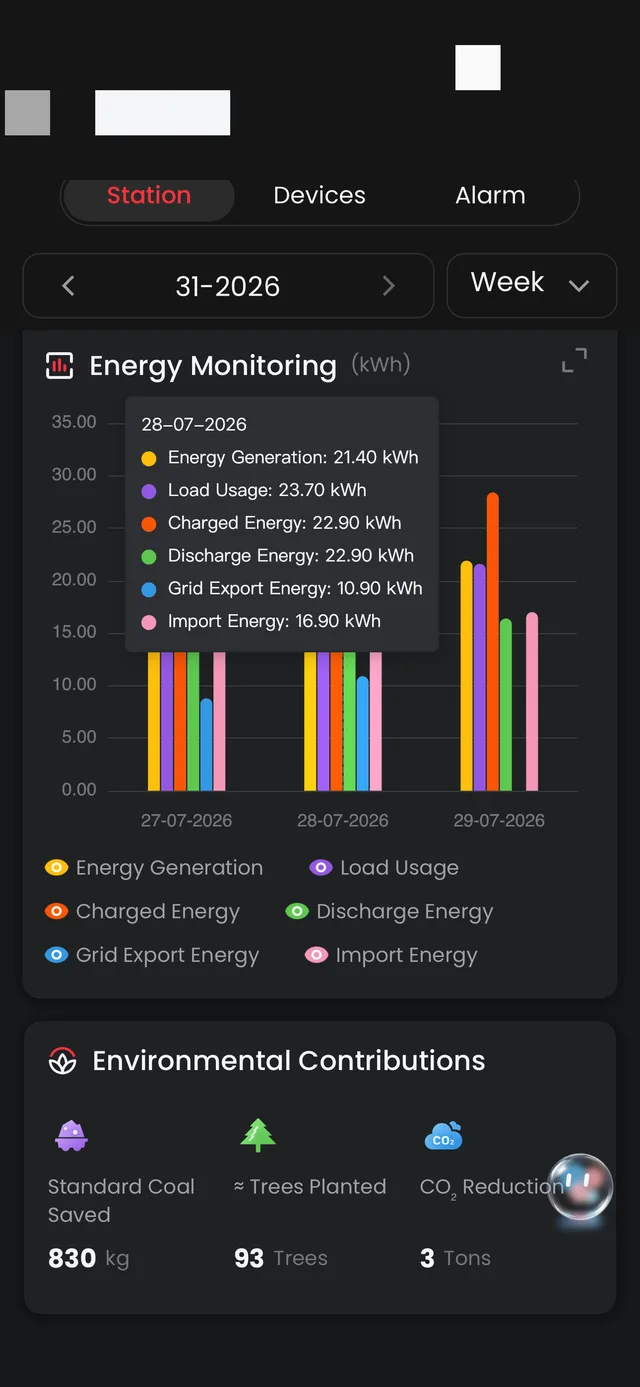

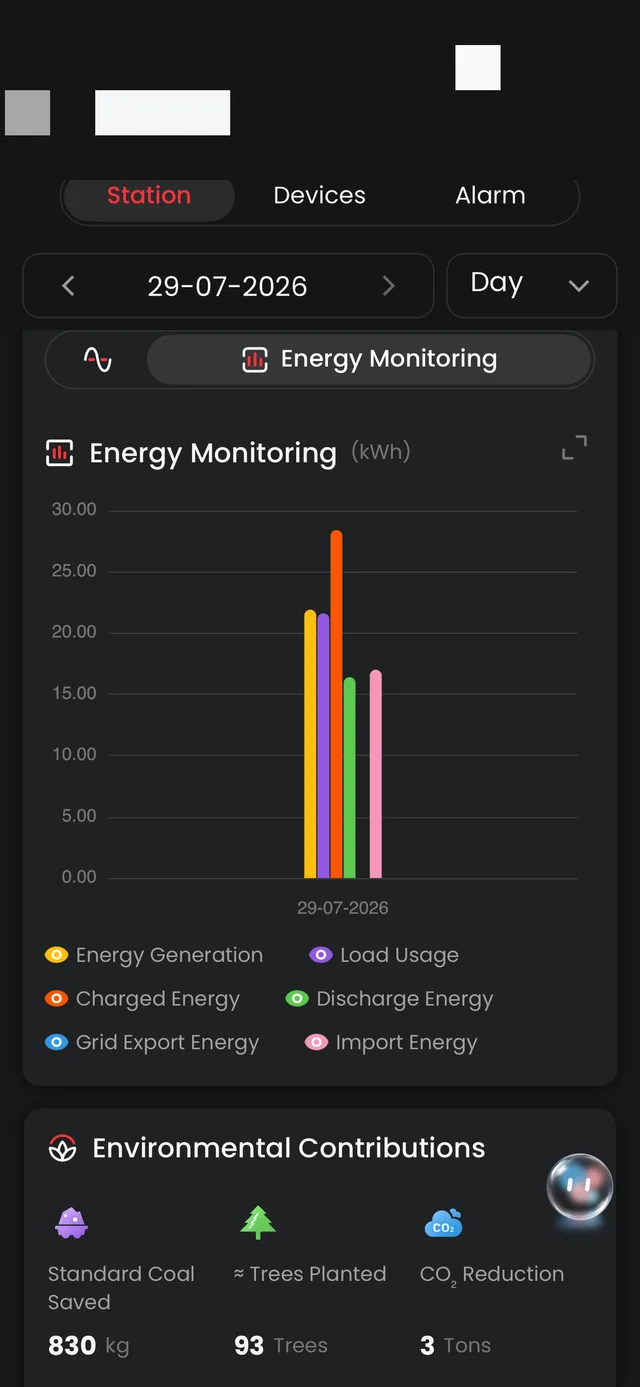

GoodWe's SEMS puts generation, storage, consumption and earnings on one dashboard , free, with no subscription, and remote management if something ever needs attention.
Generation & earnings at a glance
Production, self-use, feed-in and revenue on one clear dashboard.

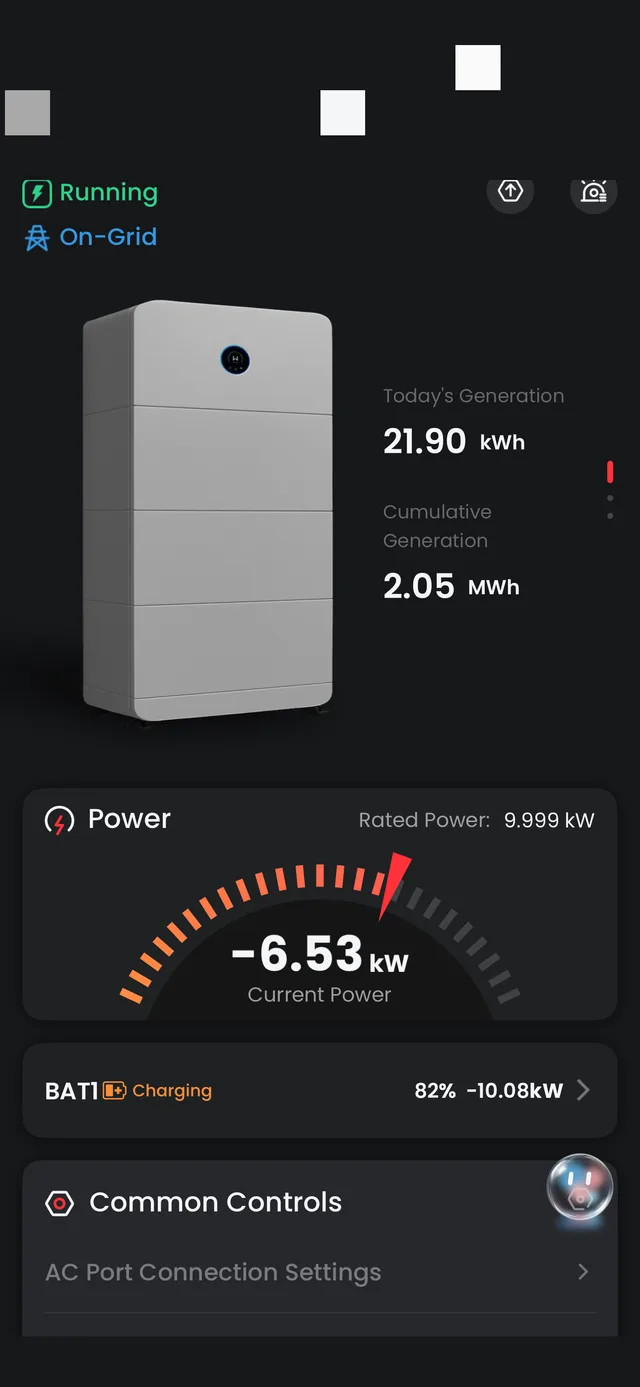

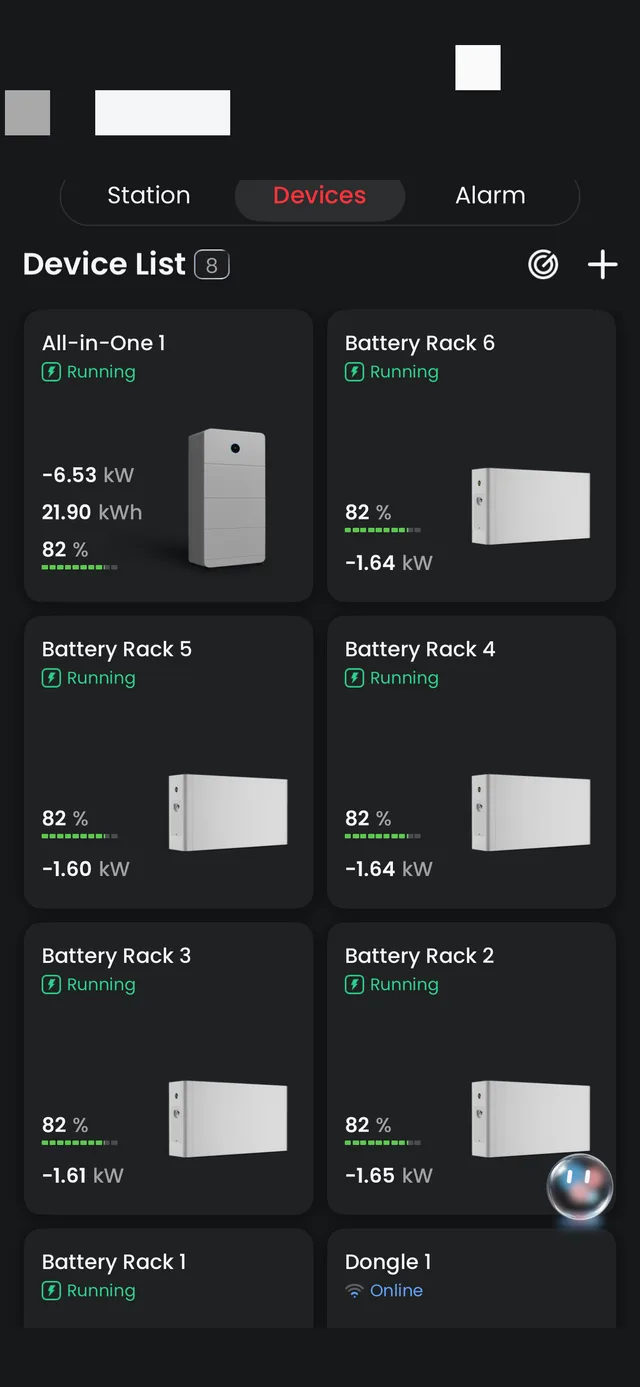

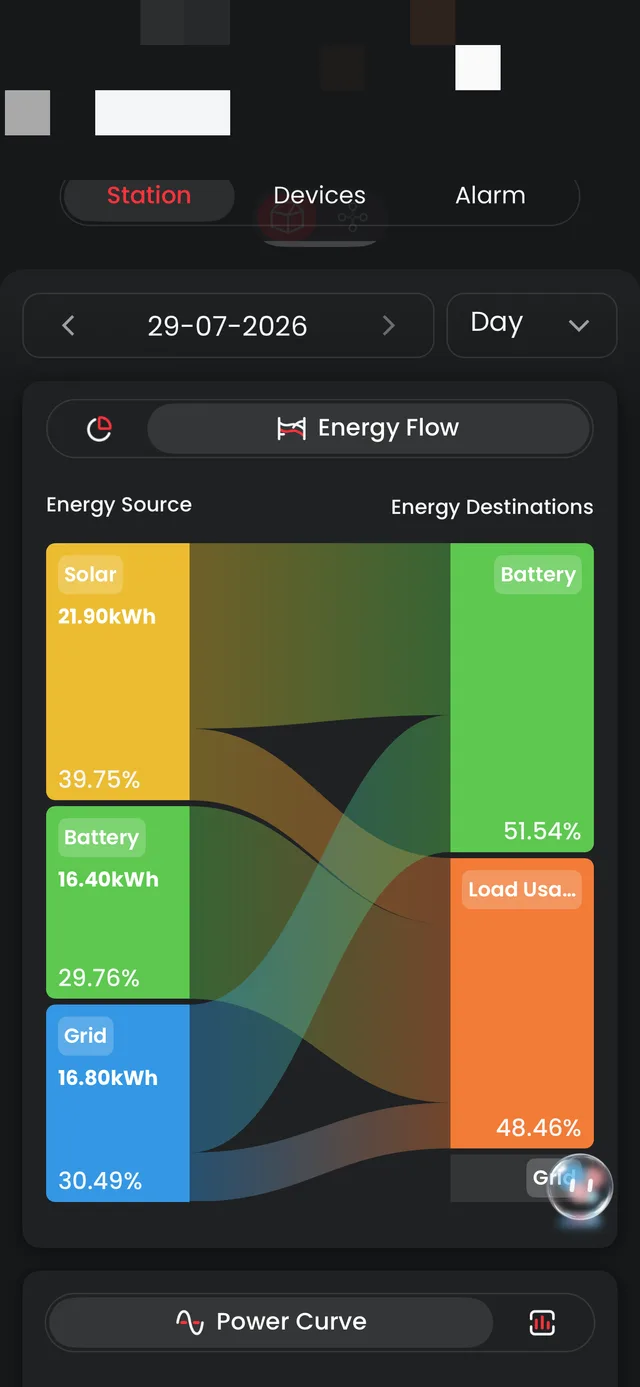

Real-time monitoring
Track solar, battery and household consumption as it happens.
Remote management & alerts
Fault notifications and remote troubleshooting keep the system healthy.
Free, no subscription
Core monitoring and management with no ongoing fee.
Is GoodWe right for your home?
Sunbridge considers your existing solar system, electricity usage, backup requirements, switchboard, installation conditions and future energy plans before recommending a product or configuration.
- 01
Homes adding solar and storage together
Hybrid inverters coordinate generation and storage from the start.
- 02
Households upgrading an existing system
A broad inverter range fits many existing solar layouts.
- 03
Homes wanting clear energy monitoring
Monitoring shows solar, storage and consumption at a glance.
- 04
Properties needing a practical install
Established products suit standard residential installations.
Sunbridge advisor insight
Final suitability depends on your existing solar system, inverter, switchboard, electricity usage, backup expectations and future energy plans.
FAQ
Frequently asked questions
It is a current LFP all-in-one system from GoodWe, a listed inverter maker founded in 2010, and GoodWe Australia describes it as Clean Energy Council approved. The ESA inverter has a 10-year GoodWe warranty and the battery modules a 10-year product and performance warranty. It is a newer product line, so whether it suits your home depends on your supply phase, roof, switchboard and backup needs.
GoodWe Technologies Co., Ltd. makes them. The company was founded in 2010, is based in Suzhou, China, and has been listed on the Shanghai Stock Exchange (stock code 688390) since 2020. GoodWe Australia Pty Ltd, in Rowville, Victoria, is the Australian importer.
GoodWe rates the 5.12 and 8.32 kWh modules for at least 8,000 cycles and the 6.0 and 9.0 kWh modules for at least 10,000, based on laboratory testing. The battery warranty runs 10 years and covers 70% of usable energy, or until throughput reaches 3.0 MWh per usable kWh, whichever comes first. The ESA inverter carries a 10-year limited warranty.
It can, with the right backup configuration. The ESA has a dedicated backup port, and GoodWe states switchover in under 4 ms on the hybrid models. During an outage, output is limited to the inverter's off-grid rating, for example 10 kVA on the 10 kW single-phase model. Which circuits are covered is decided at design and installation.
Each battery module measures 800 x 326 x 270 mm (W x H x D) and weighs 57.5 to 79 kg depending on its size. The single-phase inverter is 800 x 300 x 270 mm and 24 to 26 kg, and the three-phase inverter is 800 x 340 x 270 mm and 34 to 38 kg. Total height depends on how many modules are in the stack, plus the floor base.
Yes. GoodWe's time-of-use (TOU) mode can charge the battery from the grid in a low-tariff period and discharge it in a peak period. GoodWe's manual says to use it only where local rules allow. Whether it is worthwhile depends on your tariff.
Yes. GoodWe's battery warranty supports capacity expansion with no limit on the production date of added modules, and module sizes can be mixed up to 12 modules or 108 kWh. GoodWe notes that battery heating is unavailable in mixed stacks and that expansion needs BMS and DC-DC firmware V06 or later. After an expansion, the system should run one full charge and discharge cycle.
Up to 12 modules per system, for up to 108 kWh with 9.0 kWh modules, and up to six in one column. Module sizes are 5.12, 6.0, 8.32 and 9.0 kWh, and they can be mixed.
Explore more
More options from GoodWe
More from GoodWe in other categories, plus the other Solar Battery brands Sunbridge supplies and installs , one team, one warranty-backed install either way.
More from GoodWe , EV Chargers View GoodWe EV Chargers
Other Solar Battery brands
Free home energy strategy report
Understand what system may suit your home before choosing a product
Sunbridge can review your electricity bill, household energy use, solar potential and future requirements to help identify a suitable energy solution.
